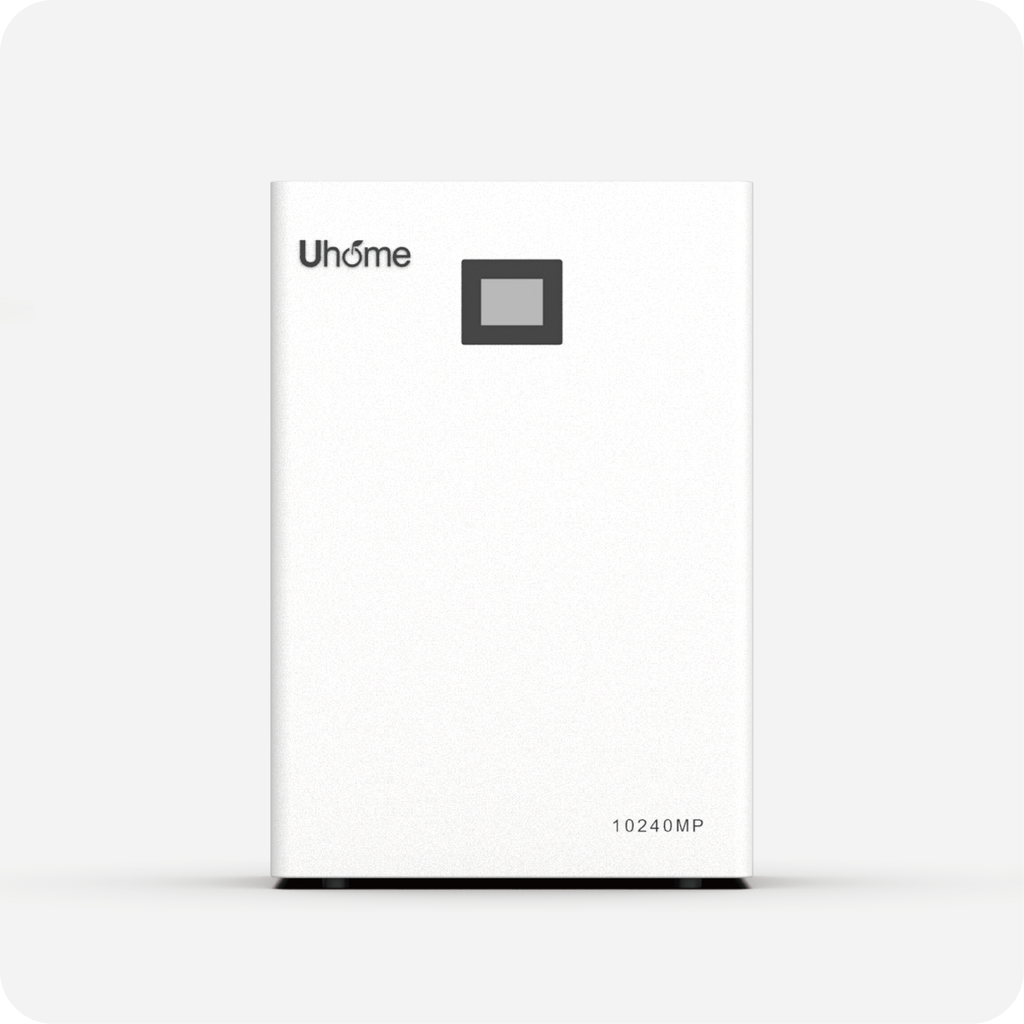

Low-Voltage Energy Storage Battery - 10.2 kWh - Uhome LFP 10240M
Uhome LFP 10240M lithium battery, 10.2 kWh.
LiFePO₄ prismatic cell technology with 9.4 kWh usable energy, 93% recommended depth of discharge and ≥8,000 cycles. Built-in WiFi, CAN/RS485 communication and scalable up to 16 units in parallel.
Designed for residential energy storage and backup applications.
Technical specifications
| Technology | LiFePO₄ - Prismatic |
Nominal energy | 10.2 kWh |
Usable energy | 9.4 kWh |
Nominal voltage | 51.2 V DC |
Recommended charge/discharge current | 100 A / 100 A |
| Max. charge/discharge current | 100 A / 120 A |
| Depth of discharge (DoD) | 93 % recommended |
| Cycle life | ≥ 8,000 cycles @ 25 °C |
Scability | Up to 16 units in parallel |
| Communication | CAN / RS485 |
| Installation | Ground mounted |
Ingress protection | IP20 |
Phase
determined by compatible inverter; battery itself is DC.
